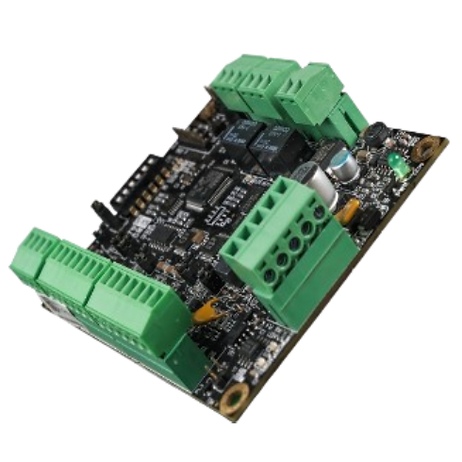

Card Reader Interface Board
The 2-Door Controller is OSDP-encrypted, supporting a maximum of 64 doors per S1000. Features Dual Wiegand, an unlimited solid-state relay for strikes, and configurable I/O (2 Relays, 1 SSR, 2 Inputs). Critical Offline Mode ensures card processing continues even if communication with the Controller is lost, backed by Dual Flash Memory for no-downtime firmware upgrades.
Key Features
Supports IN/OUT readers
Dual Wiegand support
Solid-state relay
Encrypted OSDP with the S1000 Controller
Digital and analog inputs are software-configurable
Specifications
Physical:
Dimensions: 100mm x 70mm
Weight: 70g
Environmental:
Operating temp: -10°C to 70°C
Operating humidity: 5% (0°C) to 95% (40°C)
Electrical:
Power consumption: 50mA at 12VDC all inputs terminated
Power supply: 12VDC to 14VDC
Inputs: 2 analog or digital multi EOL monitored
Outputs: 2 relay NO/NC 1A at 24VDC, 6 O/C outputs, 1x solid state relay 0V to 24V AC/DC at 1A
Communication:
Dual flash memory: Firmware updated from the main controller without losing door operation
Wiegand: 2x Data0/Data1 signals with optional pull-up
