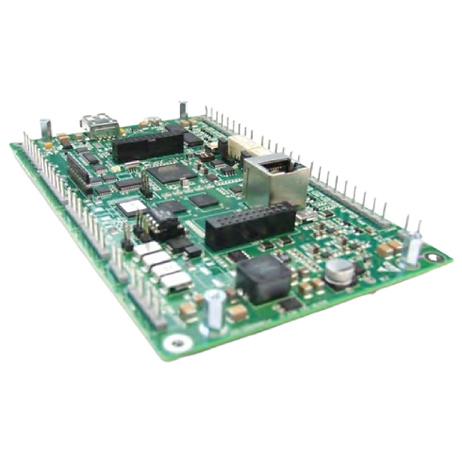

8603 IP 2-Door Controller
The PACOM 8603 is an Intelligent IP Door Controller built on PACOM-Edge technology, utilizing the Ethernet backbone to reduce traditional security cabling for scalable deployment. It supports up to 2 anti-passback doors and is configurable via its embedded web server or PACOM host software. The 8603 provides 8 configurable inputs and 8 outputs by default, with easy scalability up to 40 inputs and 24 outputs using expansion modules.
Key Features
Compatible with all PACOM controllers
Configurable as a door controller and an input output module
On-board Ethernet 10/100 Base T port
Embedded web server
Anti-passback capability
Support USB smart card reader
Support up to 500,000 cards
Support up to 50,000 card transactions
Support up to 17 different card formats (1 fixed, 16 customizable)
Degraded memory for up to 1000 cards
Remote firmware upgrade
Dedicated tamper input - can be used with an external switch
On-board color LEDs indicate Ethernet, power, transmission, reception, and 2 relay outputs
Specifications
Physical:
Dimensions: 160mm x 100mm x 22mm
Packed weight: 175g
Electrical:
Input voltage: 9 to 36VDC @ 2A
Available auxiliary power: 1000mA @ 12VDC for peripheral devices
Current consumption: 210mA @ 12VDC typical
Battery: Internal Memory CR2450 3Vlithium type
Operating temp: -10°C to 55°C
Maximum humidity: 93%(non-condensing) @40°C
Communications:
Network protocol: Ethernet
Port: RS485, RS232, Ethernet
Signal:
Inputs: 8 end-of-line monitored
Outputs: 2x relay (NO/NC), 6 x open collector
On-board I/O: 4 readers, 2 doors
Security:
Tamper switch: On-board supported provided
