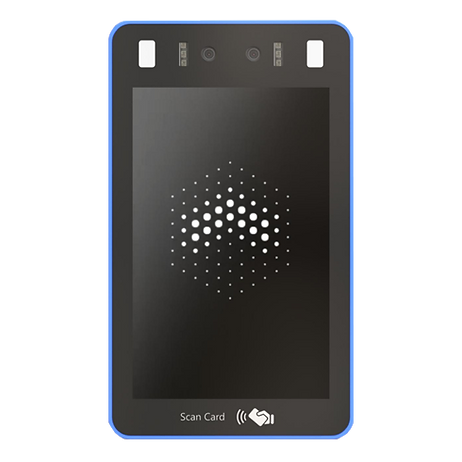

8-inch Facial Recognition Reader
Facial recognition is one kind of touchless biometric access technology. Due to its convenience usage, it is suggested to use Facial ONLY like lobby access. For high security application, an additional technology is highly recommended for double authentications. Based on privacy and security concerns, only facial characteristics are stored at the device. This facial reader also designed to support IP65
Key Features
High-Speed Recognition: Identifies faces in less than 0.5s > 99.8% accuracy.
Large Capacity: Stores 20,000 facial characteristic templates (expandable to 100K with 99% accuracy).
Liveness Detection: Prevents spoofing attempts using photos or videos.
IP65 Rated: Designed for durability and environmental protection.
Multi-Authentication: Supports combinations of Facial, Card, PIN, Fingerprint, and QR Code.
Dual Camera System: Utilizes IR and RGB cameras with light compensation for varying conditions.
Offline Logging: Stores up to 20,000 offline events and captures pictures of failed access attempts.
Optional Modules: Available with thermal sensing (+- 0.3 ℃ accuracy), Suprema fingerprint module, and QR code reader.
Specifications
Display: 8" LCD capacitive touch screen with 800 x 1280 resolution.
Hardware: DDR4 4G RAM and 16GB Flash memory.
Recognition Distance: 0.5m to 1.0m.
Power Supply: 12-15VDC, maximum 2A.
Communication: Ethernet (TCP/IP), Wiegand, and RS485 (OSDP).
Control Output: Relay output rated at 12VDC@1A.
Operating Environment: Temperature range of -20℃ to 55℃; humidity 10%-90%.
Dimensions: Basic facial unit measures 235 x 138 x 30mm.
